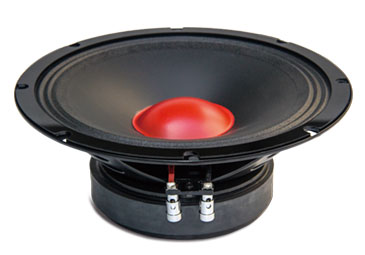

汽车音响~同轴与套件扬声器

性能与特点

Steel basket with black paiting

T-yoke and washer with black painting

Paper cone with cloth surround

High-resistant ASv former and CCAW tinsel

High performance ferrite magnet

技术参数

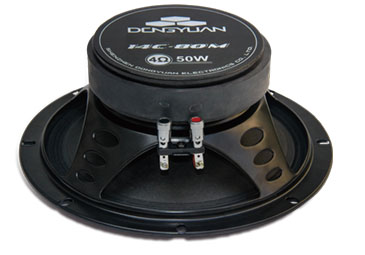

MODEL 14C-80M
Description 8" Midrange
Impedance 4 Ohm
Sensitivity 93dB
Freq Response 80hz-7Khz
Rms/Max Power 80W/160W
Magnet Weight 30.4 oz
voice Coil Dia 1.37" ASv
Mounting Depth 78mm
