性能与特点

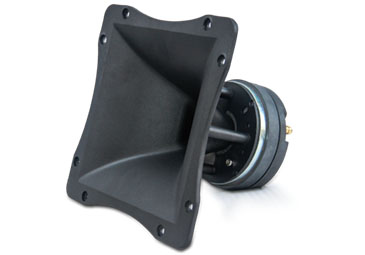

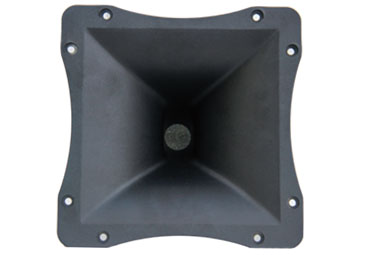

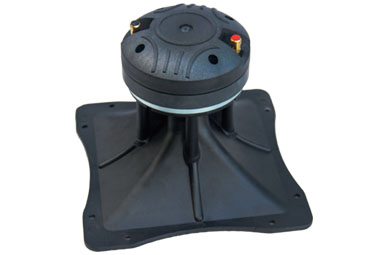

Pom horn with black sanding finish

Blue zinc T-yoke and washer

Titanium

High performance ferrite magnet

Max sound quality

This tower system is a born-loaded, compression-driver (hLCD), high-efficiency component system providing maximun sound quality and especially at a distance.

技术参数

MODEL 14L-10H
Description 3" Tweeter
Impedance 8 Ohm
DCR 6 Ohm ±7%
Rated Power Input 80W
S.P.P (1W/1M) 108 db ±2db
Rreq Ersponse F0-18Khz
voice Coil Dia 3"
Siaphragm Material Titanium
v.C. Bobbin Kapton
Magnet Dimension 47.6 oz
