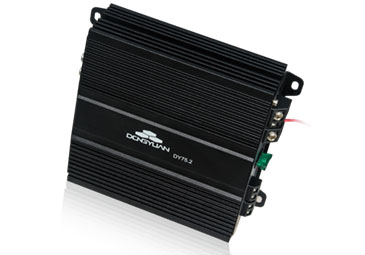

| MODEL | DY75.2 |
| 4 Ohms Power(watts) 14.4v DC ThD=1% | 75W x 2Ch |
| 2 Ohms Power(watts) 14.4v DC ThD=1% | 120W x 2Ch |
| 1 Ohms Power(watts) 14.4v DC ThD=1% | N/A |
| 4 Ohms BridgePower(watts) 14.4v DC ThD=1% | 220W x 1Ch |
| ThD+N | ＜0.1% |
| Frequency Response(+/-1dB) | 20hz-22Khz |
| S/N Ratio | ≥75dB |
| Damping Factor(into 4 Ohms) | ＞150 |
| Input Sensitivity | 0.2-7.0v |
| Input Impedance | 22K Ohms |
| Crossover Slope | 12dB/Octave |
| variable high Pass Crossover.(hz) | 40-250hz |
| variable Low Pass Crossover.(hz) | 40-250hz |
| variable Bass EQ | 0-15dB |
| Bass EQ Freq | 50hz |
| variable Sub Sonic Filter | N/A |
| variable Phase Shift | N/A |
| Remote Gain Controller | Optional |
| Short Circuit Protection | Yes |
| DC Offset Protection | Yes |
| Reverse Polarity Protection | Yes |
| Withl two Amps Linked | N/A |
| Pass Through Line Out | Yes |
| Overload Protection | Yes |
| Thermal Protection | Yes |
| Soft Turn On/Off | Yes |
| Dimension (LxWxh) | 193 x 160 x 51mm |
| 7.60" x 6.30" x 2.00" |
