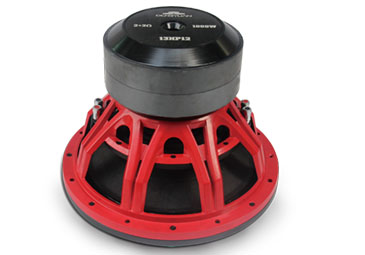

Silver painting steel basket
T-yoke and washer with electrophoresis black
High performance ferrite magnet

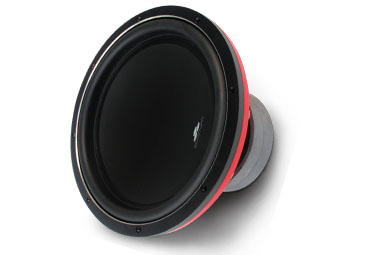

Fiber cone with black rubber surround
Heat-resistant ASv former and copper tinsel
| MODEL | 13HP-124 |
| Description | 12" |
| Impedance | 2+2 Ohm |
| Sensitivity | 86dB |
| Freq Response | 29hz-1000hz |
| Rms/Max Power | 500W/800W |
| Magnet Weight | 72 oz |
| voice Coil Dia | 2.5" ASv |
| TS Parameter bl | 10.57 |
| TS Parameter fo | 29 |
| TS Parameter vas | 26.6L |
| TS Parameter qts | 0.46 |
| Recommend Sealed BOX | N/A |
| BOX Inner volume | 35L |
| BOX FB | 34.7hz |
| BOX Inner Tube | Φ93x375mm |
