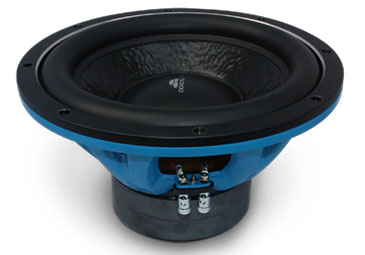

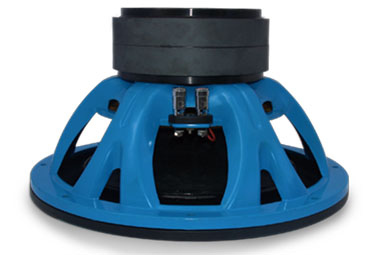

Blue aluminum basket
T-yoke and washer with electrophoresis black
High performance ferrite magnet
PP cone with rubber surround
Heat-resistant ASv former and PESv tinsel
| MODEL | 13CA-10D4 |
| Description | 10" Subwoofer |
| Impedance | 4+4 Ohm |
| Sensitivity | 88dB/1M/1W |
| Freq Response | 30hz-500hz |
| Rms/Max Power | 250W/500W |
| Magnet Weight | 140 oz |
| voice Coil Dia | 2" ASv |
| TS Parameter bl | 20.4 |
| TS Parameter fo | 37 |
| TS Parameter vas | 30 |
| TS Parameter qts | 0.32 |
| Recommend vented box | 19L |
| Recommend fb | 37 |
