Black steel basket
Blue zinc T-yoke and washer
PP cone with rubber surround
Heat-resistant KSv former and copper tinsel
High performance ferrite magnet

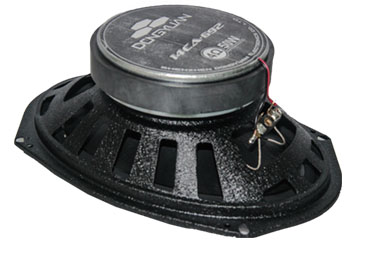

| MODEL | 14CA-692 |
| Description | 6 x 9" Coaxial |
| Impedance | 4 Ohm |
| Sensitivity | 88dB |
| Freq Response | 58hz-20Khz |
| Rms/Max Power | 50W/100W |
| Magnet Weight | 26.9 oz |
| voice Coil Dia | 1.35" KSv |
| System | 3 Way |
| Tweeter | 1" Mylar |
| Mid-woofer | 1.5" Mylar |
| Crossover | 6dB/oct |
| Mounting depth | 76mm |
