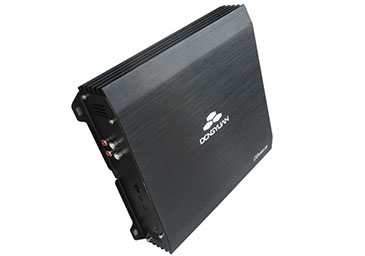

| Five Channel Models | DC7005-AB |
| 4 Ohms Power (Watts) 13.8V DC THD＝0.5% | 35 x 4 + 150 x 1 |
| 2 Ohms Power (Watts) 13.8V DC THD＝0.5% | 55 x 4 + 260 x 1 |
| 4 Ohms Bridged Power (Watts) 13.8V DC THD＝0.5% | 100 x 2 + 150 x 1 |
| THD | < 0.05% |
| Frequency Response (+/-1dB) | 20Hz - 22kHz |
| S/N Ratio | 80dB |
| Damping Factor (into 4 Ohms) | 100 |
| Input Sensitivity | 0.3 - 8.0 V |
| Input Impedance | 15K Ohms |
| Crossover Slope | 12dB/Octave |
| Variable High Pass Crossover.(Hz) | 50 - 250Hz |
| Variable Low Pass Crossover. (Hz) | 50 - 250Hz |
| Variable Subwoofer EQ | 0 - 18 dB |
| Subwoofer EQ Freq. | 40Hz |
| Remote Bass Control | Optional |
| Pass Through Line out | YES |
| Thermal Protection | YES |
| Short Circuit Protection | YES |
| Overload Protection | YES |
| DC Offset Protection | YES |
| Power Reverse Polarity Protection | YES |
| Dimension | 14.2" L x 2.0" H x 9.6" W |
