| MODEL | 12CA-124 | |

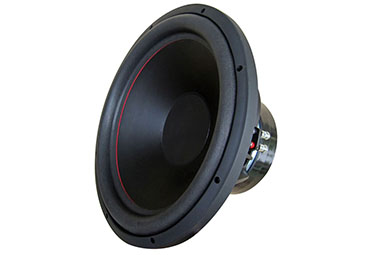

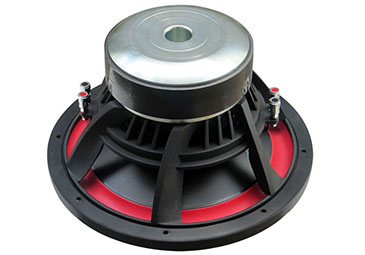

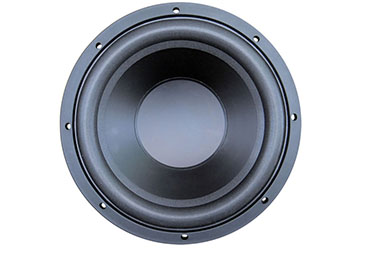

| DESCRIPTION | 12" Subwoofer | |
| IMPEDANCE | 2+2 OHM | |
| SENSITIVITY(1W/1m ） | 87dB | |
| FREQ RESPONSE | 27HZ-500HZ | |
| RMS/Max Power | 700W/1400W | |
| MAGNET WEIGHT | 115.13 Oz | |
| VOICE COIL DIA. | 2.5" KSV | |
| TS Parameter | 29 | 27 |
| Vas | 100 | |
| Qts | 0.48 | |
| RECOMMEND VENTED BOX | NA | NA |
| Fb | NA | |
| Inverter Tube | NA | |
| RECOMMEND SEALED BOX | 92L | |
