| MODEL | 12CA-154 | |

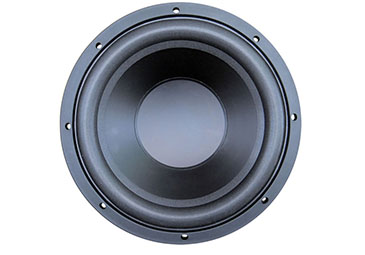

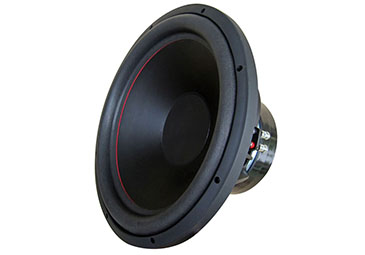

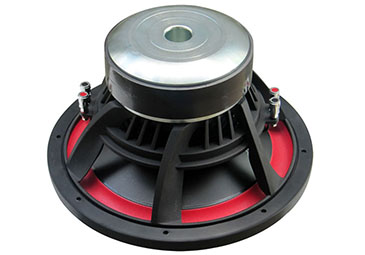

| DESCRIPTION | 15" Subwoofer | |
| IMPEDANCE | 2+2 OHM | |
| SENSITIVITY(1W/1m ） | 88dB | |
| FREQ RESPONSE | 29HZ-500HZ | |
| RMS/Max Power | 800W/1600W | |
| MAGNET WEIGHT | 154.41Oz | |
| VOICE COIL DIA. | 2.5" KSV | |
| TS Parameter | Fo | 27 |
| Vas | 123.8 | |
| Qts | 0.60 | |
| RECOMMEND VENTED BOX | Box volume | NA |
| Fb | NA | |
| Inverter Tube | NA | |
| RECOMMEND SEALED BOX | 65L | |
