| MODEL | 12CE-15 | |

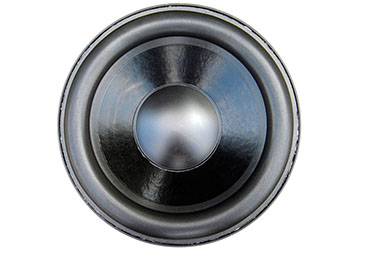

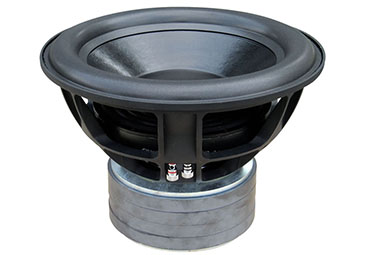

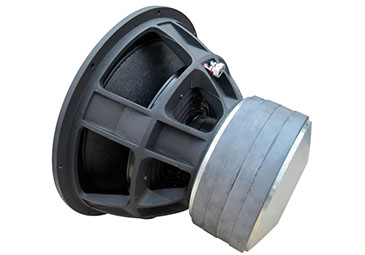

| DESCRIPTION | 15" Subwoofer | |
| IMPEDANCE | 2 + 2 OHM | |
| SENSITIVITY(1W/1m ） | 87dB | |
| FREQ RESPONSE | 26HZ-500HZ | |
| Rate/Max Power | 1800W/3600W | |
| MAGNET WEIGHT | 388.83 Oz | |
| VOICE COIL DIA. | 4" BASV | |
| TS Parameter | Fo | 30 |
| Vas | 80 | |
| Qts | 0.40 | |
| RECOMMEND VENTED BOX | Box volume | 114L |
| Fb | 29Hz | |
| Inverter Tube | Ф80 × 280mm | |
| RECOMMEND SEALED BOX | 60L | |
