Car Audio~Amplifer

Features

  • 稳定AB类电路
  • 电源采用高效率环形电源供给电路
  • 稳定2 ohm双声道/4 ohm单声道输出
  • 4种电路保护功能

Technical

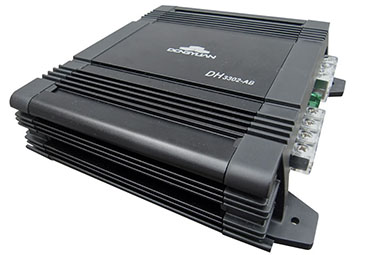

MODLE DH3302-AB
POWER 4 Ohms Power (Watts) 14.4V DC THD=1% 65W x 2CH
2 Ohms Power (Watts) 14.4V DC THD=1% 75W x 2CH
1 Ohms Power (Watts) 14.4V DC THD=1% N/A
4 Ohms Bridged Power (Watts) 14.4V DC THD=1% 135W x 1CH
PARAMETERS THD+N < 0.2%
Frequency Response (+/-1dB) 20Hz - 22kHz
S/N Ratio >75dB
Damping Factor (into 4 Ohms) N/A
Input Sensitivity 0.25 - 7.0 V
Input Impedance 18K Ohms
Crossover Slope 12dB/Octave
Variable High Pass Crossover.(Hz) 50 - 500Hz
Variable Low Pass Crossover. (Hz) 50 - 500Hz
Variable Bass EQ 0 - 12 dB
Bass EQ Freq. 50Hz
Variable Sub Sonic Filter N/A
Variable Phase Shift N/A
FUNCTIONS Remote Gain Controller N/A
Short Circuit Protection Yes
DC Offset Protection Yes
Reverse Polarity Protection Yes
WithI Two AMPS Linked N/A
Pass Through Line out N/A
Overload Protection Yes
Thermal Protection Yes
Soft Turn On/ Off Yes
DIMENSION 211mm(L) x 196mm (W) x 52.5 mm(H)
(8.31 x 7.72 x 2.07 inch )
